SMD Type NTC Thermistors 贴片型负温度系数热敏电阻器

产品编号：WMF-C Series

产品说明：

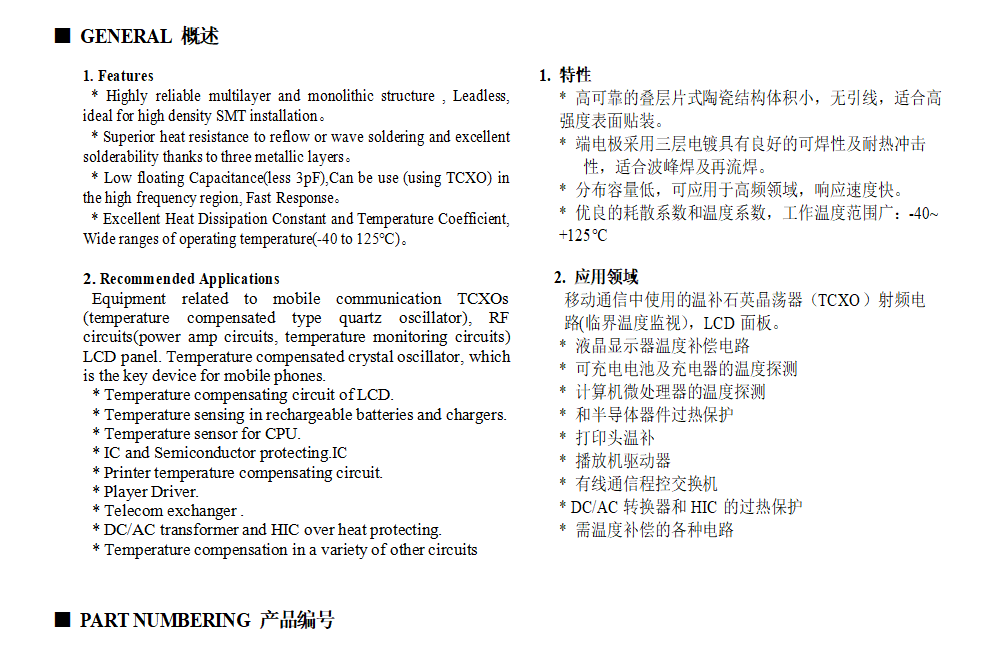

1. 特性 * 高可靠的叠层片式陶瓷结构体积小，无引线，适合高强度表面贴装。 * 端电极采用三层电镀具有良好的可焊性及耐热冲击性，适合波峰焊及再流焊。 * 分布容量低，可应用于高频领域，响应速度快。 * 优良的耗散系数和温度系数，工作温度范围广：-40~ +125℃

立即咨询资料下载

产品详情

产品规格

SMD Type NTC Thermistors 贴片型负温度系数热敏电阻器

WMF-C Series

SMD Type NTC Thermistors贴片型负温度系数热敏电阻器

- For Temperature Compensation & Sensing

用于温度补偿和温度探测

SMD Type NTC Thermistors 贴片型负温度系数热敏电阻器

■ SPECIFICATION S TABLE规格表

No. 序号	Part No. 产品编号	Rated Zero Power Resistance 额定零功率电阻 R₂₅ (KΩ)	B Value B值（K）	Thermal Dissipation Constant 热耗散系数 δ(mW/℃)	Rated power 额定功率 P（mw）		Thermal Time Constant 热时间常数 τ(Sec)
1	WMF-C-0402R101□B2700	0.1	2,700	1.0	100		≤3
2	WMF-C-0402R221□B2750	0.22	2,750
3	WMF-C-0402R331□B2800	0.33	2,800
4	WMF-C-0402R471□B2850	0.47	2,850
5	WMF-C-0402R681□B2900	0.68	2,900
6	WMF-C-0402R102□B3000	1.0	3,000
7	WMF-C-0402R222□B3100	2.2	3,100
8	WMF-C-0402R222□B3900	2.2	3,900
9	WMF-C-0402R332□B3200	3.3	3,200
10	WMF-C-0402R472□B3250	4.7	3,250
11	WMF-C-0402R682□B3350	6.8	3,350
12	WMF-C-0402R103□B3435	10	3,435
13	WMF-C-0402R103□B3900	10	3,900
14	WMF-C-0402R153□B3500	15	3,500
15	WMF-C-0402R223□B3800	22	3,800
16	WMF-C-0402R333□B3900	33	3,900
17	WMF-C-0402R473□B3900	47	3,900
18	WMF-C-0402R473□B4050	47	4,050
19	WMF-C-0402R683□B3950	68	3,950
20	WMF-C-0402R104□B4100	100	4,100
21	WMF-C-0402R154□B4050	150	4,050
22	WMF-C-0402R224□B4050	220	4,050
23	WMF-C-0402R334□B4100	330	4,100
24	WMF-C-0402R474□B4150	470	4,150
25	WMF-C-0402R564□B4200	560	4,200
26	WMF-C-0402R105□B4500	1000	4,500
27	WMF-C-0603R101□B2700	0.1	2,700	2.0		200	≤5
28	WMF-C-0603R221□B2750	0.22	2,750
29	WMF-C-0603R331□B2800	0.33	2,800
30	WMF-C-0603R471□B2850	0.47	2,850
31	WMF-C-0603R681□B2900	0.68	2,900
32	WMF-C-0603R102□B3000	1.0	3,000
33	WMF-C-0603R222□B3100	2.2	3,100
34	WMF-C-0603R222□B3900	2.2	3,900
35	WMF-C-0603R332□B3200	3.3	3,200
36	WMF-C-0603R472□B3250	4.7	3,250
37	WMF-C-0603R682□B3350	6.8	3,350
38	WMF-C-0603R103□B3435	10	3,435
39	WMF-C-0603R103□B3600	10	3,600
40	WMF-C-0603R103□B3900	10	3,900
41	WMF-C-0603R153□B3600	15	3,600
42	WMF-C-0603R223□B3900	22	3,900
43	WMF-C-0603R333□B4000	33	4,000
44	WMF-C-0603R473□B3900	47	3,900
45	WMF-C-0603R473□B4150	47	4,150
46	WMF-C-0603R683□B4050	68	4,050
47	WMF-C-0603R104□B4000	100	4,000

No. 序号	Part No. 产品编号	Rated Zero Power Resistance 额定零功率电阻 R₂₅ (KΩ)	B Value B值（K）	Thermal Dissipation Constant 热耗散系数 δ(mW/℃)	Rated power 额定功率 P（mw）			Thermal Time Constant 热时间常数 τ(Sec)
48	WMF-C-0603R104□B4250	100	4,250	2.0		200		≤5
49	WMF-C-0603R154□B4050	150	4,050
50	WMF-C-0603R224□B4100	220	4,100
51	WMF-C-0603R334□B4100	330	4,100
52	WMF-C-0603R474□B4200	470	4,200
53	WMF-C-0603R564□B4200	560	4,200
54	WMF-C-0603R105□B4500	1000	4,500
55	WMF-C-0805R101□B2700	0.1	2,700	3.0	300		≤10
56	WMF-C-0805R221□B2750	0.22	2,750
57	WMF-C-0805R331□B2800	0.33	2,800
58	WMF-C-0805R471□B2850	0.47	2,850
59	WMF-C-0805R681□B2900	0.68	2,900
60	WMF-C-0805R102□B3000	1.0	3,000
61	WMF-C-0805R222□B3100	2.2	3,100
62	WMF-C-0805R222□B3900	2.2	3,900
63	WMF-C-0805R332□B3200	3.3	3,200
64	WMF-C-0805R472□B3250	4.7	3,250
65	WMF-C-0805R682□B3350	6.8	3,350
66	WMF-C-0805R103□B3435	10	3,435
67	WMF-C-0805R103□B3600	10	3,600
68	WMF-C-0805R103□B3900	10	3,900
69	WMF-C-0805R153□B3600	15	3,600
70	WMF-C-0805R223□B3900	22	3,900
71	WMF-C-0805R333□B4000	33	4,000
72	WMF-C-0805R473□B3900	47	3,900
73	WMF-C-0805R473□B4150	47	4,150
74	WMF-C-0805R683□B4150	68	4,150
75	WMF-C-0805R104□B4100	100	4,100
76	WMF-C-0805R104□B4300	100	4,300
77	WMF-C-0805R224□B4200	220	4,200
78	WMF-C-0805R334□B4200	330	4,200
79	WMF-C-0805R474□B4200	470	4,200
80	WMF-C-0805R564□B4300	560	4,300
81	WMF-C-0805R105□B4500	1,000	4,500

可根据客户订做阻值规格，□阻阻精度可选。
